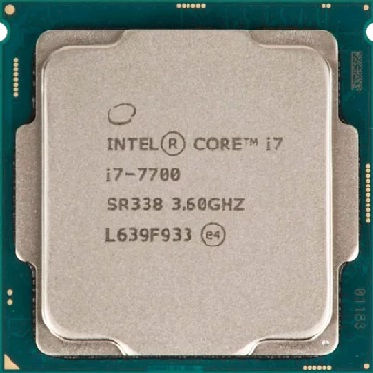

Intel Core i7-7700 Processor

CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 4.20 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.20 GHz Processor Base Frequency 3.60 GHz Cache 8 MB Intel® Smart Cache Bus Speed 8 GT/s # of QPI Links 0 TDP 65 W Supplemental Information Marketing StatusLaunched Launch Date Q1'17 Servicing Status End of Servicing Updates End of Servicing Updates Date Sunday, March 31, 2024 Embedded Options Available Yes Use Conditions PC/Client/Tablet DatasheetView now Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V Max # of Memory Channels 2 ECC Memory Supported ‡ No GPU Specifications GPU Name‡ Intel® HD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.15 GHz Graphics Video Max Memory 64 GB 4K Support Yes, at 60Hz Max Resolution (HDMI)‡ 4096x2304@24Hz Max Resolution (DP)‡ 4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡3 Device ID0x5912 Expansion Options Scalability1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1151 Max CPU Configuration1 Thermal Solution Specification PCG 2015C (65W) TJUNCTION 100°C Package Size37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Intel® Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS GuardYes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
