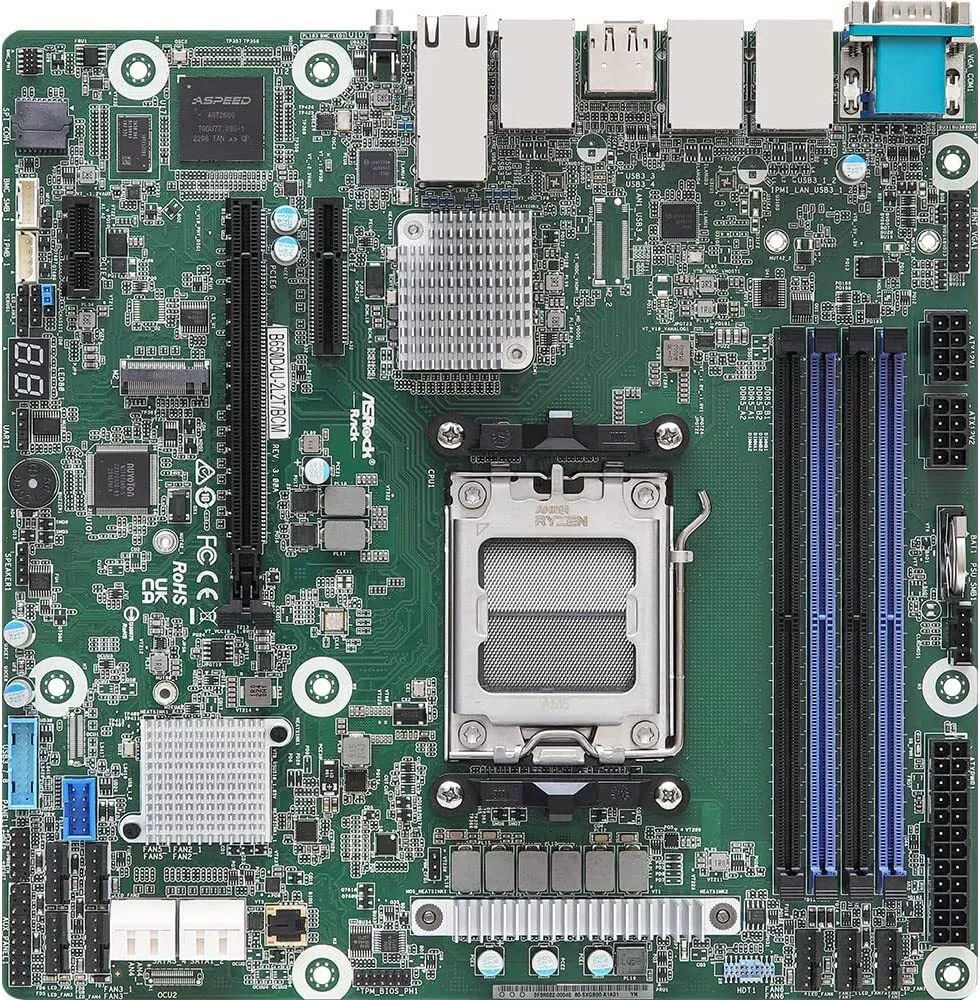

Physical Status
Form Factor Micro-ATX
Dimensions 9.6" x 9.6"
Processor System
CPU Supports AMD EPYC 4004 and AMD Ryzen 9000/8000/7000 Series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power Up to 170W by proper cooling solution
Chipset AMD B650E
System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency 5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1 SLOT4: PCIe4.0 x1 [FCH]
Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
SATA/SAS Storage
PCH Built-in Storage AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin
Ethernet
Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)
Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort

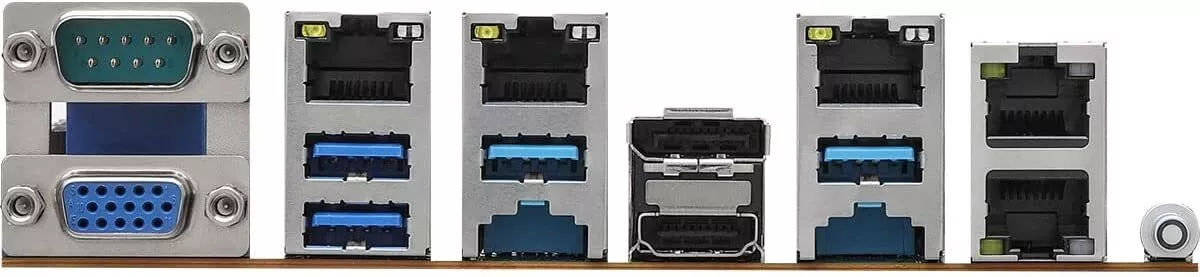

Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI
Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header 1
Speaker Header 1
Buzzer 1
Fan Header 7 (6-pin)
TPM Header 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1
Others 1 (3-pin, 80 debug port header)
