Descriere
Specifications:
https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/fortigate-70f-series.pdf
Note: All performance values are “up to” and vary depending on system configuration.
1 IPsec VPN performance test uses AES256-SHA256.
2 IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured
with Logging enabled.
3 SSL Inspection performance values use an average of HTTPS sessions of different
cipher suites.
4 NGFW performance is measured with Firewall, IPS and Application Control enabled.
5 Threat Protection performance is measured with Firewall, IPS, Application Control and
Malware Protection enabled.

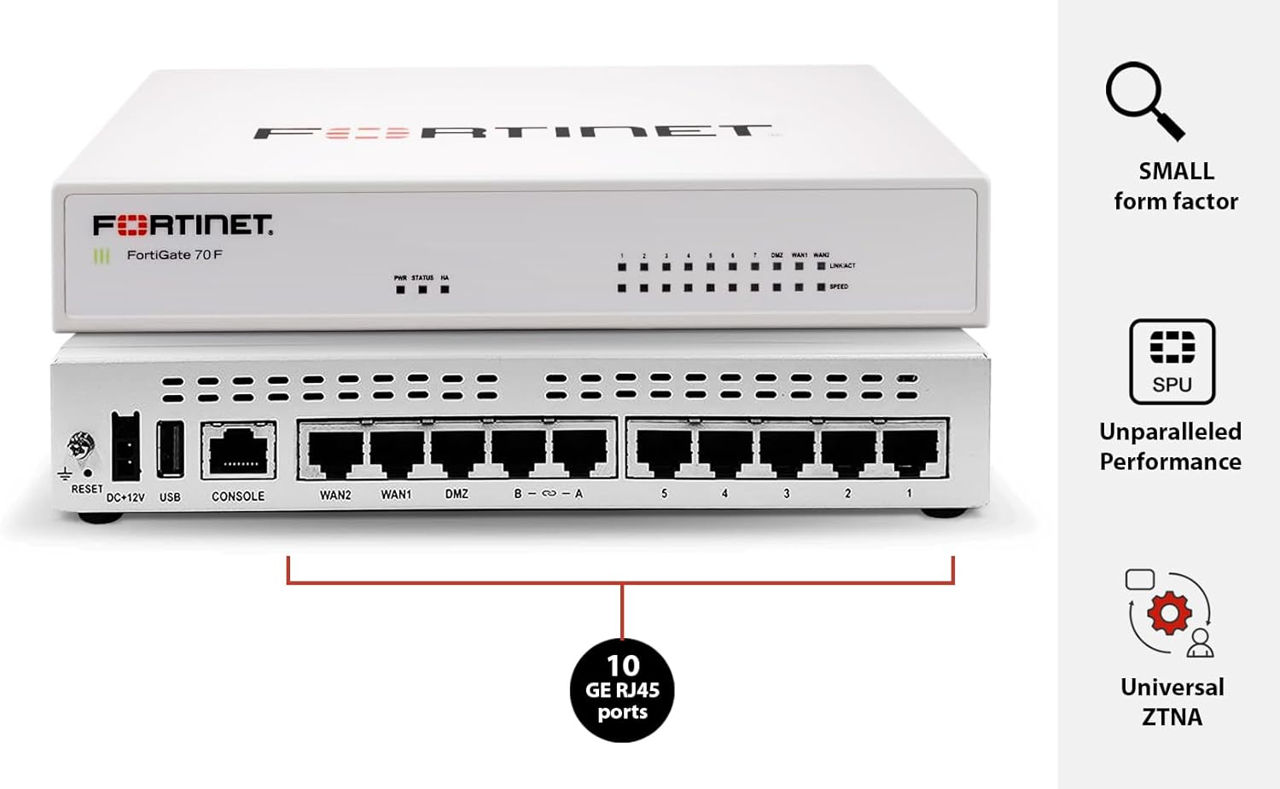

FORTIGATE 70F FORTIGATE 71F
Hardware Specifications
GE RJ45 WAN / DMZ Ports 2 / 1 2 / 1
GE RJ45 Internal Ports 5 5
GE RJ45 FortiLink Ports (Default) 2 2
Wireless Interface – –
USB Ports 1 1
Console (RJ45) 1 1
Internal Storage – 1 x 128 GB SSD
Trusted Platform Module (TPM) — —
Bluetooth Low Energy (BLE) — —
Signed Firmware Hardware Switch — —
System Performance* — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 800 Mbps
System Performance and Capacity
Firewall Throughput
(1518 / 512 / 64 byte UDP packets)
10/10/6 Gbps
Firewall Latency (64 byte UDP packets) 2.54 μs
Firewall Throughput
(Packets Per Second)
9 Mpps
Concurrent Sessions (TCP) 1.5 M
New Sessions/Second (TCP) 35 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte) 1 6.1 Gbps
Gateway-to-Gateway IPsec VPN
Tunnels
200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 405 Mbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel
Mode)
200
SSL Inspection Throughput
(IPS, avg. HTTPS) 3
700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 500
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) 3
100 000
Application Control Throughput
(HTTP 64K) 2
1.8 Gbps
CAPWAP Throughput (HTTP 64K) 8.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches
Supported
24
Maximum Number of FortiAPs
(Total / Tunnel Mode)
64 / 32
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
